Across Canada the late July weeks are when shops, farms, and service bays are busiest, because the equipment that has to be painted, blasted, or bolted back together is all needed before the season turns. That workload runs on compressed air, and the machine feeding it is usually a stationary electric air compressor bolted to a shop floor rather than a portable unit dragged between jobs.
Buyers almost always shop by pressure, comparing the highest number each machine can reach. Pressure is rarely what fails them. What fails them is running out of air halfway through a job, and that is a different question entirely.
The tank is a reservoir, and the pump is the stream feeding it
Think of the receiver tank on an electric air compressor as a small reservoir behind a dam. The pump is the stream running into it, steady and modest. The tools are whatever draws water out, and the two flows have nothing in common except the level between them.
A framing nailer takes a short, sharp draw once every second or two and nothing at all in between, so the stream refills the reservoir faster than the tool empties it. The level never falls far, and the tank barely matters.
A sandblasting nozzle or a rotary sander is the opposite. It draws continuously, for minutes at a time, and if that draw is larger than the stream feeding it, the reservoir empties no matter how large it is. Eighty gallons buys more minutes than twenty, but it does not change the outcome.
Continuous demand is the number that actually sizes the machine
The correct way to select an electric air compressor is therefore to look at the delivery of the pump, measured in cubic feet per minute at working pressure, and compare it against the sustained consumption of the tools that will run longest.
The tank only shaves peaks. It covers brief surges beyond pump output and keeps the motor from starting every few seconds, but it cannot manufacture air. Classifying tools by demand pattern makes the choice obvious:
- Intermittent tools: nailers, blow guns, tire inflation
- Semi-continuous tools: impact wrenches, ratchets, cut-off tools
- Continuous tools: sanders, grinders, sandblasters, spray guns
Anything in the third group must be covered by pump output alone. A shop that occasionally sprays a full vehicle panel is sizing around that panel, not around the impact wrench that empties the tank for four seconds at a time.

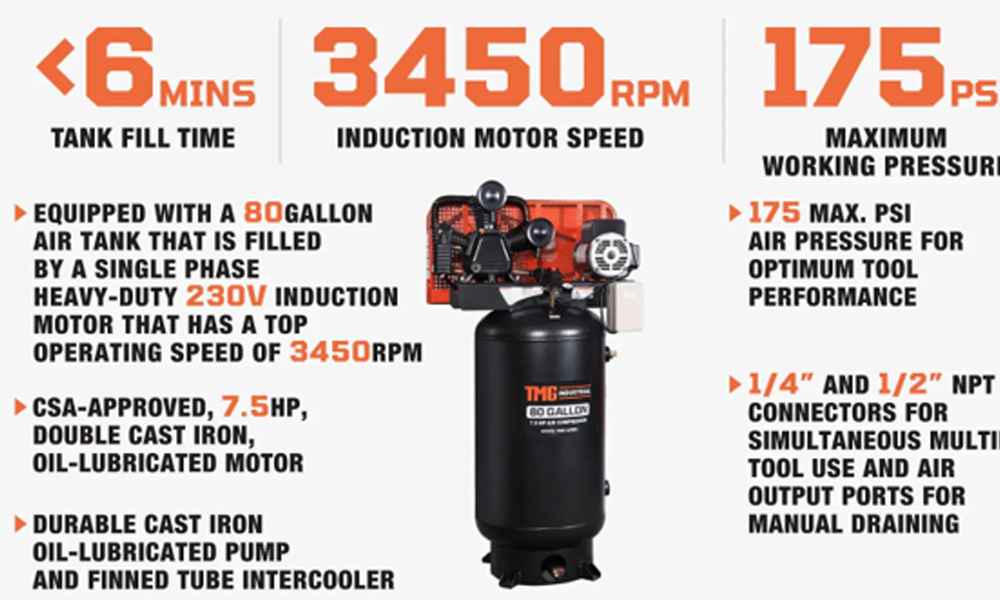

This is also why fill time is a more useful specification than a maximum pressure figure. A machine that refills a large tank in about six minutes is stating how quickly the reservoir recovers after a long job.
An induction motor trades starting current for a long life
Stationary machines almost always use an induction motor, which has no brushes and no commutator. Nothing rubs, so nothing wears out on a schedule, and the motor runs quieter and far longer than the universal motors in small portable units.
The trade-off appears at the instant of starting. An induction motor draws a heavy inrush current for the fraction of a second it takes to reach speed, several times its running draw, because until the rotor turns there is little back voltage opposing the supply.
That inrush is why an electric air compressor of this class asks for a two hundred and thirty volt supply on a dedicated circuit. Higher voltage halves the current for the same power, and a dedicated run keeps the surge from tripping a shared breaker.
Water in the tank is the failure nobody watches for
Compressing air heats it, and hot air holds moisture easily. Inside the tank that air cools, its capacity to carry water vapor drops, and the difference condenses into liquid that pools along the bottom of the vessel.
Every hour of operation adds to that pool, and it sits against bare steel where the protective film of oil is thinnest. Corrosion then works outward from the inside, invisibly thinning the wall of a vessel that holds a substantial store of energy.
This is the most serious failure mode an electric air compressor has, and also the easiest to prevent. Opening the drain valve at the base of the tank at the end of each working day pushes the water out while pressure is still high.
A body shop in the Fraser Valley that blasts and paints through a humid summer will drain twice a day, because humid intake air condenses far more water per hour than dry air does.
That moisture is a quality problem before it is a safety problem, since water carried down the line spits through a spray gun and ruins a finish.
Read the machine as a system rather than a pressure rating and the selection becomes straightforward. Match pump delivery to the tools that run without pause, give the motor the dedicated supply its starting current demands, and drain the tank before it drains the life of the vessel, and an electric air compressor will run a busy Canadian shop for years without drama.
